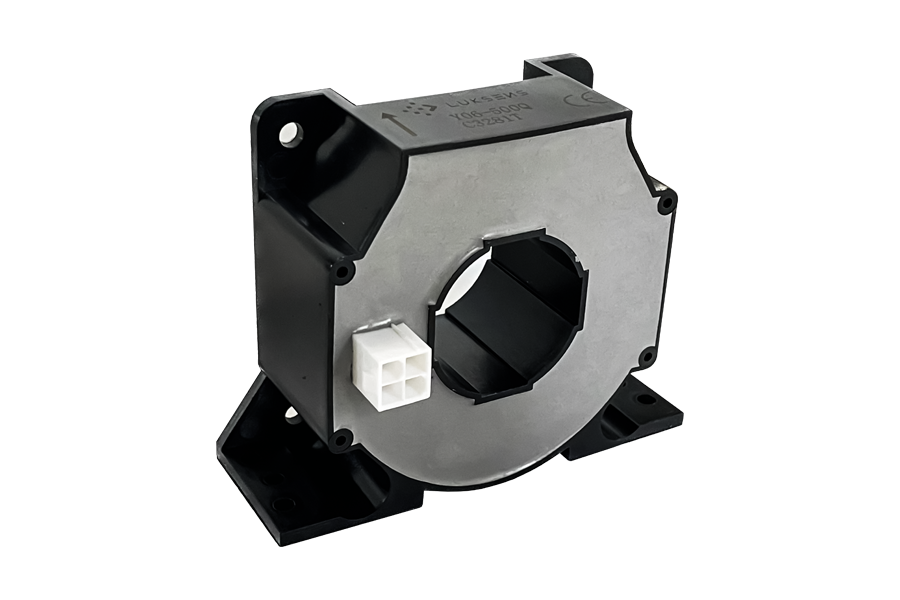

Y06-500S Close-Loop current transducer

Accuracy: 0.1%
Measuring Range: 500A
Output: 1:5000(A)
Supply Voltage: ±15V

The Y06-500S series is a current transducer which operates on the principle of magnetic compensation. It measures DC, AC or pulse currents and their combinations, with galvanic isolation techniques used to separate the primary and secondary circuits.

Categories: ,

Description

pa_accuracy

322
Current measuring range

Supply voltage

pa_output

337

Feature:

  • Non-contact measurement of high current
  • Close-Loop measurement (compensated)
  • Nearly zero magnetic hysteresis
  • Superior temperature stability and linearity
  • High frequency bandwidth 100kHz



Suitable for the following:

  • Home appliances
  • AC variable speed drives and servo motor drives
  • Static converters for DC motor drives
  • Battery management systems
  • Uninterruptible power supplies (UPS)
  • Switched-mode power supplies (SMPS)
  • Over current protections
  • Short circuit protections
Download DataSheet in PDF

Please paste here product’s 3D Rendering

Additional information

pa_accuracy

322
Current measuring range

Supply voltage

pa_output

337
