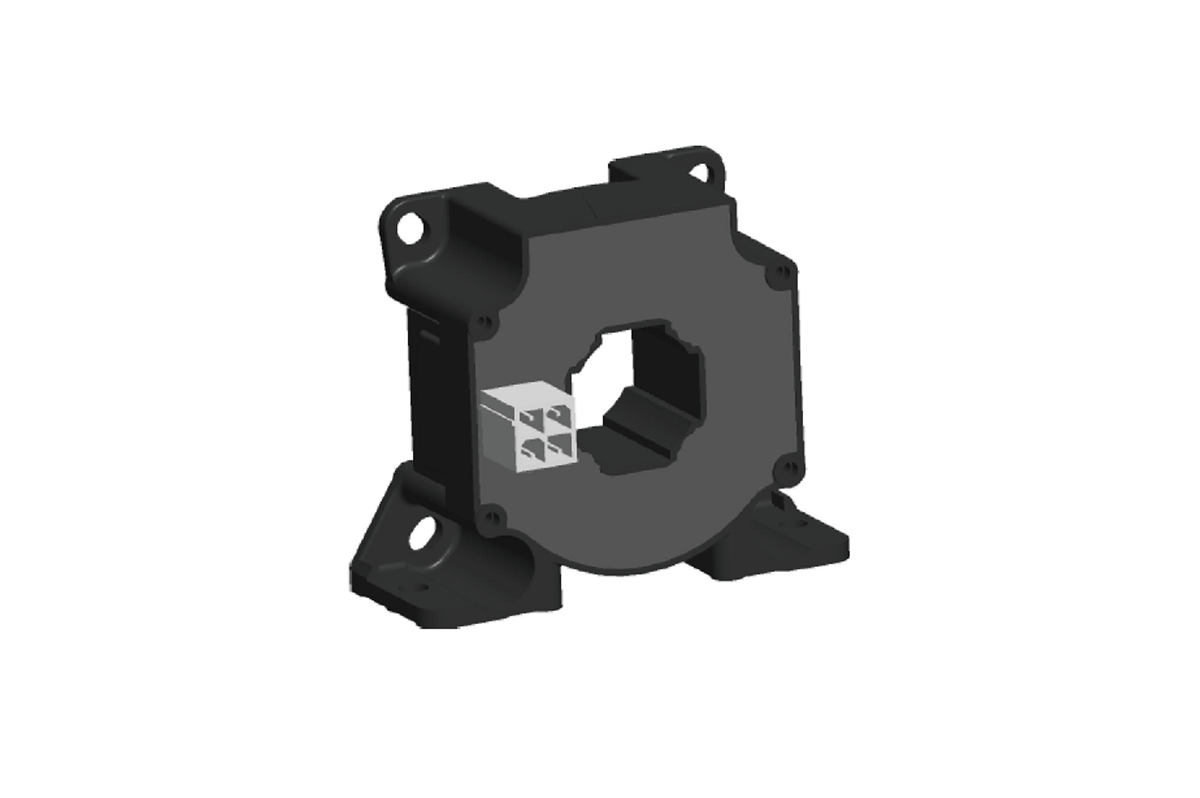

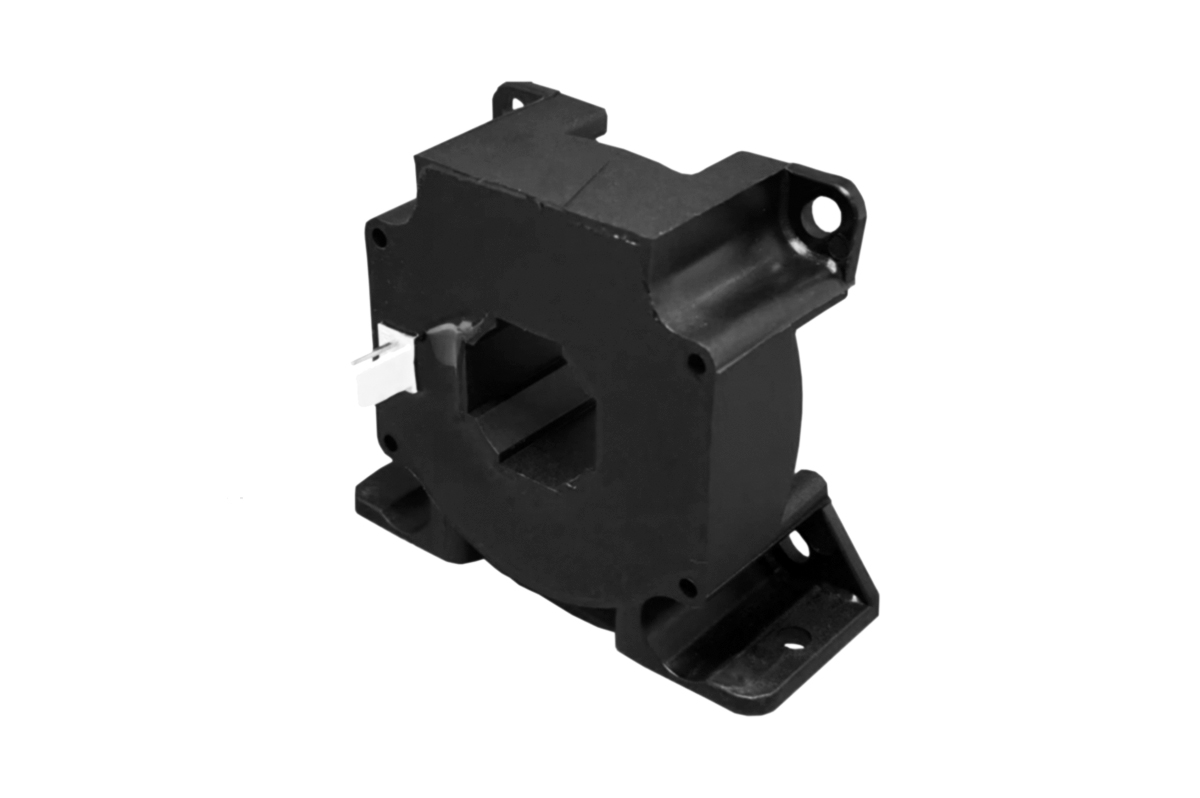

Y06-200 Close-Loop current transducer

The Y06-200 series is a current transducer which operates on the principle of magnetic compensation. It measures DC, AC or pulse currents and their combinations, with galvanic isolation techniques used to separate the primary and secondary circuits.

Description

Series

Y06-200

Measurement

Current

Nominal Range

±200 A

Measuring Range

±420 A

Second. Output Signal

Current ratio output(mA)

Conversion Ratio

1:2,000

Primary Signal

AC, DC, Pulse+ DC

Supply Voltage Range

±12…15 V

Non-Linearity Error

<0.1 %

Op. Temperature

-40 °C / 85 °C

Technology

Close loop Hall effect

Mounting

Terminal plug

Applications

AC variable speed drives and servo motor drives

Static converters for DC motor drives

Energy management

Uninterruptible power supplies (UPS)

Switched-mode power supplies (SMPS)

Overcurrent protections

Short circuit protections

Welding applications


Y06-200 Series-Datasheet-Luksens

Additional information

Accuracy

Current measuring range

Output (V)

1/2000 (A)

Supply voltage
