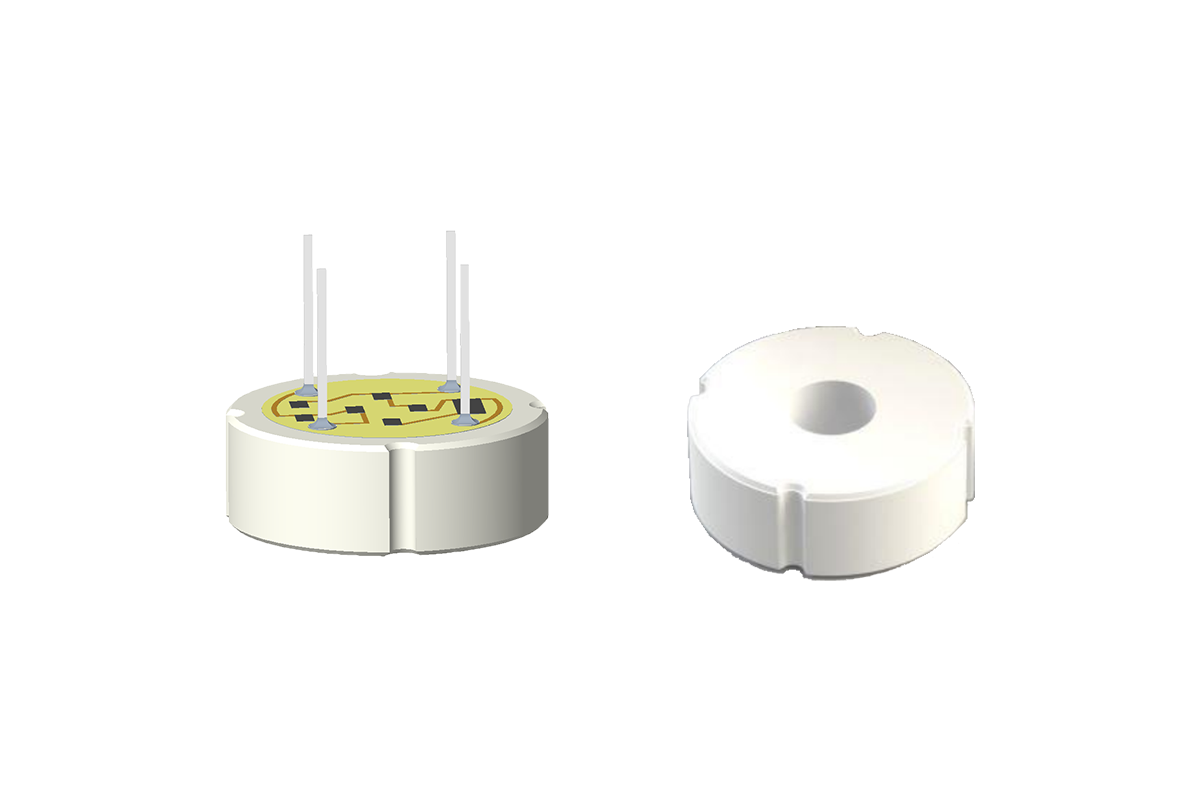

PSC piezoresistive ceramic pressure sensor

E-Connector: Pre-tinned pads, Wires 50.8mm
Range: 0…50 bar
Output: 2.0-4.0mV/V
Type: Absolute, Relative

The PSC series pressure sensors feature a ceramic cell using the piezoresistive principle. A Wheatstone bridge is screen-printed on one side of the ceramic diaphragm via thick film technology, while the other side directly contacts the measured medium. The Al₂O₃ ceramic offers excellent chemical resistance, eliminating the need for additional protection. The monolithic design with a reinforced outer area allows O-ring mounting in housings. PSC sensors ensure reliability under temperature changes, provide precise linearity and minimal hysteresis.

Categories: , ,

Description

Electrical connection

Wires 50.8 mm, Pre-tinned pads
Output type

2.0-4.0mV/V, 2-10VDC
Pressure range

0…50 bar
Pressure type

Absolute, Relative

Features

  • Exceptional resistance to corrosion and abrasion
  • Optimized for high pressure applications
  • Easy mounting
  • Customizable to meet specific requirements

Suitable for the following:

  • Process control
  • Environmental control
  • Meters and instruments
  • Medical instrument
Download DataSheet in PDF

Please paste here product’s 3D Rendering

Additional information

Electrical connection

Wires 50.8 mm, Pre-tinned pads
Output type

2.0-4.0mV/V, 2-10VDC
Pressure range

0…50 bar
Pressure type

Absolute, Relative
