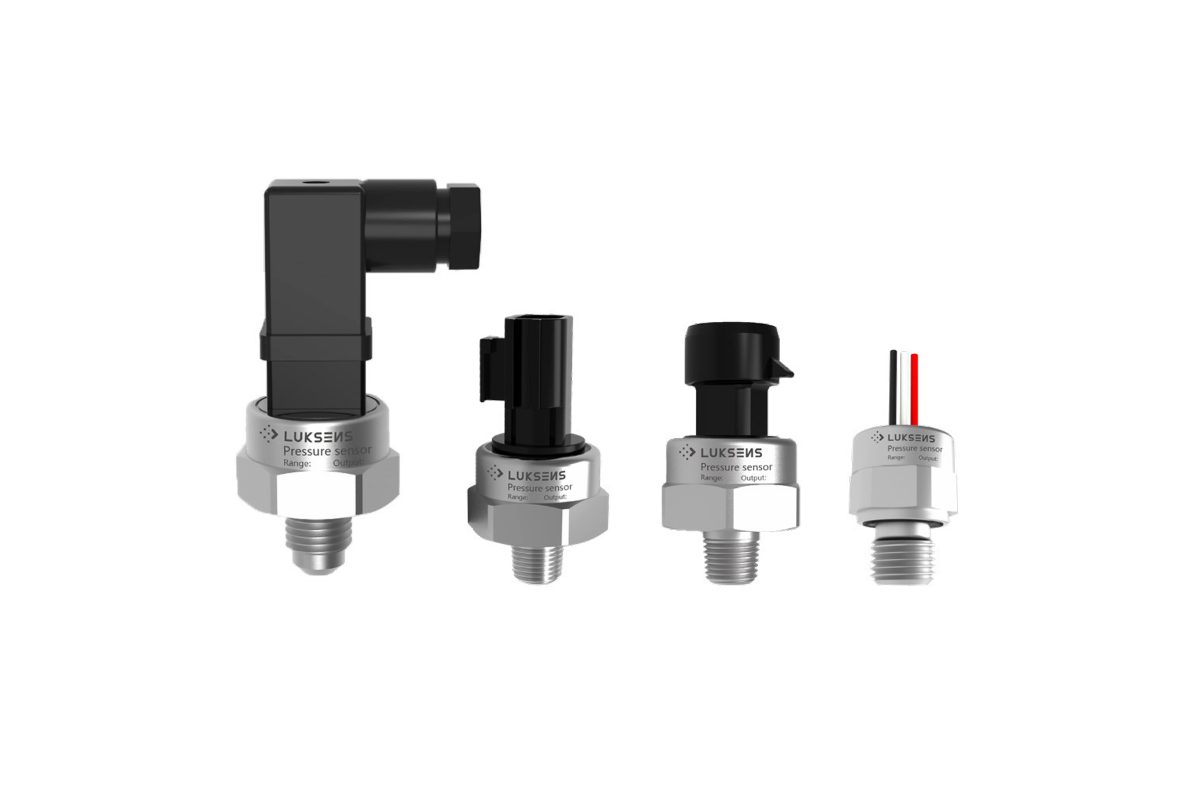

PA series OEM pressure transmitter

E-Connector: Bayonet, DIN75301-803A, DIN75301-803C, Direct cable, M12X1, Metri-Pack 150, Pre-tinned pads, RK03FB, Wires 50.8mm
Range: 0…60 bar
Output: 0.5-4.5V ratio 5VDC, 0.5-2.5V ratio 5VDC, 0.5-3.5V ratio 5VDC, 1-5V 12 to 30VDC, 0-10V 14 to 30VDC, 4-20mA 12 to 30VDC
Type: Absolute, Relative

The PA series pressure transducer combines the latest Application Specific Integrated Circuit (ASIC) technology with proven piezoresistive sensors. The measuring bridge is printed directly on one side of the diaphragm by means of Thick-Film technology. The rear part of the diaphragm can be exposed directly to the medium to be measured. The 304 housing surrounds a pressure transducer designed for general use wherever a rugged, reliable pressure transducer is required.

Categories: , , ,

Description

Electrical connection

M12x1, Bayonet, Direct cable, RK03FB, Metri-Pack 150, DIN 175301-803C PG7
Output type

0-10VDC, 14 to 30VDC, 0.5-2.5VDC, 5VDC, 0.5-3.5VDC, 5VDC, 0.5-4.5VDC ratio, 5V, 1-5VDC, 12 to 30VDC, 4-20mA, 12 to 30VDC
Pressure range

0…60 bar
Pressure type

Absolute, Relative

Feature:

  • Ceramic piezoresistive principle
  • measuring range 60 bar
  • Ultra-compact design



Suitable for the following:

  • Industrial air compressors
  • Water supply and drainage systems
  • Mechanical and plant engineering
  • Coffee machine
  • Air conditioner and Heat pump
Download DataSheet in PDF

Please paste here product’s 3D Rendering

Additional information

Electrical connection

M12x1, Bayonet, Direct cable, RK03FB, Metri-Pack 150, DIN 175301-803C PG7
Output type

0-10VDC, 14 to 30VDC, 0.5-2.5VDC, 5VDC, 0.5-3.5VDC, 5VDC, 0.5-4.5VDC ratio, 5V, 1-5VDC, 12 to 30VDC, 4-20mA, 12 to 30VDC
Pressure range

0…60 bar
Pressure type

Absolute, Relative
