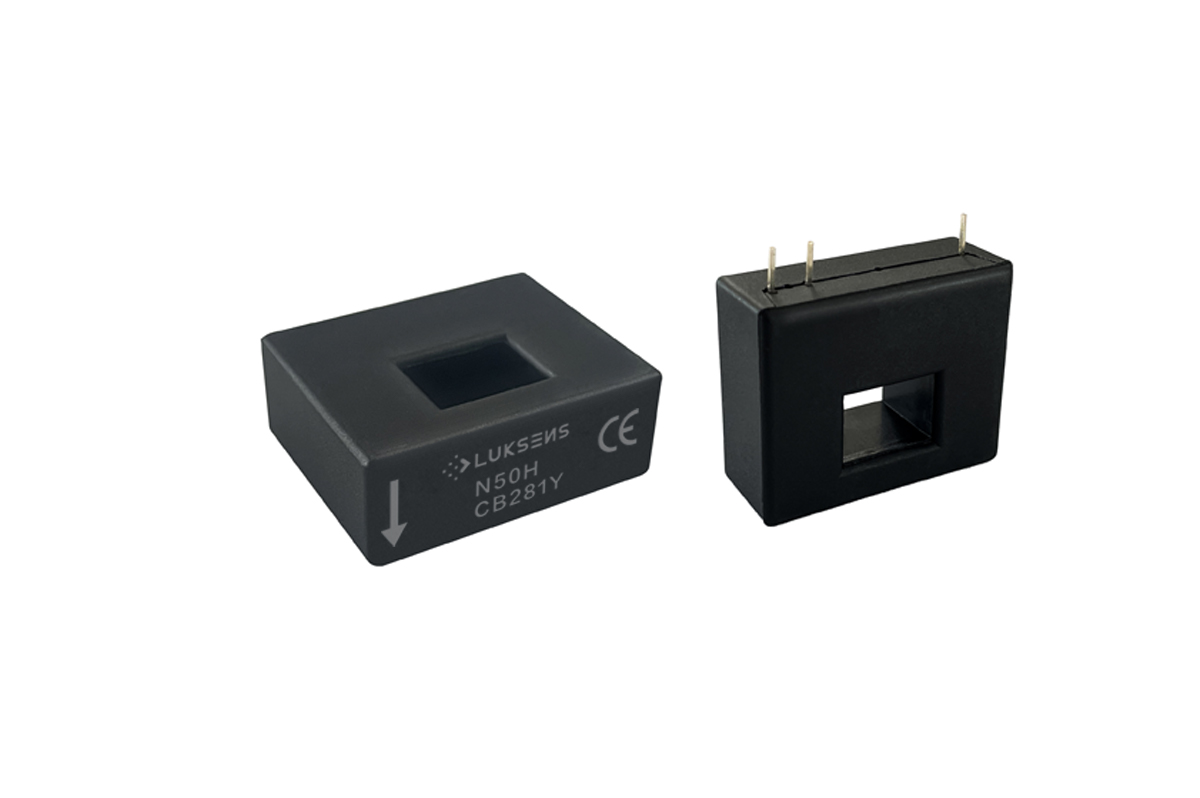

NxxH series Close-Loop current sensor

Accuracy: 0.1%
Measuring Range: 50A|100A|125A
Output: 1:1000/1:2000(A)
Supply Voltage: ±15V



The NxxH series is a current transducer which operates on the principle of magnetic compensation. It measures DC, AC or pulse currents and their combinations, with galvanic isolation techniques used to separate the primary and secondary circuits.

Categories: ,

Description

pa_accuracy

322
Current measuring range

, , ,

pa_output

345, 346
pa_supply-voltage

308

Feature:

  • Non-contact measurement of high current
  • Close-Loop measurement (compensated)
  • Nearly zero magnetic hysteresis
  • Superior temperature stability and linearity
  • High frequency bandwidth 100kHz



Suitable for the following:

  • Home appliances
  • AC variable speed drives and servo motor drives
  • Static converters for DC motor drives
  • Battery management systems
  • Uninterruptible power supplies (UPS)
  • Switched-mode power supplies (SMPS)
  • Overcurrent protections
  • Short circuit protections
