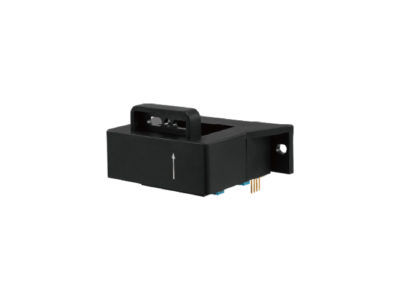

LF03 series fluxgate current sensor

Accuracy: 0.1%
Measuring Range: 50A|100A|150A
Output: 2.5±0.625V@IPN
Supply Voltage: 5V

The LF03 series fluxgate current sensor incorporates dynamic fluxgate detection technology. Its design is simple and practical, with the ability to inhibit high temperature drift. Fluxgate technology makes use of the phenomenon of magnetic core saturation to modulate the measured magnetic field, transforming it into an electric field and thus, completing the magnetic field measurement process.

Categories: ,

Description

Accuracy@25℃

Current measuring range

, ,

Supply voltage

Output

2.5±0.625V@IPN

Feature:

  • Fluxgate technology without hall element
  • Output voltage proportional to carried current
  • measuring range ±270A (DC or AC peak)
  • Compact size for PCB mount
  • Unipolar power supply

Suitable for the following:

  • Solar inverters
  • Servo motor drives
  • Uninterruptible power supplies
  • Battery management system
Download DataSheet in PDF

Please paste here product’s 3D Rendering

Additional information

Accuracy@25℃

Current measuring range

, ,

Supply voltage

Output

2.5±0.625V@IPN
