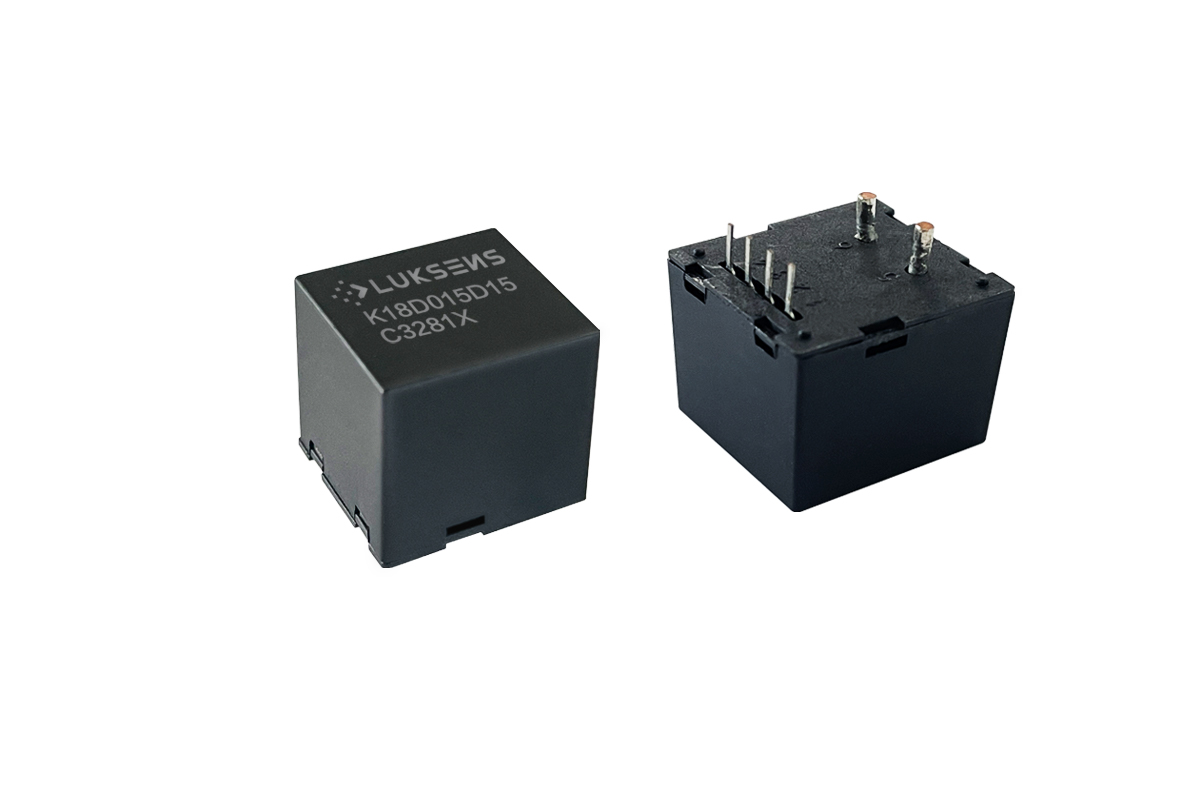

K18 series Open-Loop current sensor

Accuracy: 1%
Measuring Range: 3A|5A|10A|15A|20A|25A|30A
Output: ±4V@IPN
Supply Voltage: ±15V



The K18 series is an Open-Loop current sensor based on the Hall effect. It provides electronic measurement of DC, AC or pulse currents at the same time, and their combinations with galvanic between the primary (high current) and secondary circuits, PCB mount design is suitable for general low power applications.

Categories: ,

Description

Accuracy@25℃

Current measuring range

, , , , , ,

Supply voltage

Output

±4V@IPN

Feature:

  • Non-contact measurement of high current
  • Output voltage proportional to carried current
  • Measuring range ±30A (DC or AC peak)

Suitable for the following:

  • Frequency converters
  • Servo motor drives
  • Battery management systems
  • Welding applications
Download DataSheet in PDF

Please paste here product’s 3D Rendering

Additional information

Accuracy@25℃

Current measuring range

, , , , , ,

Supply voltage

Output

±4V@IPN
