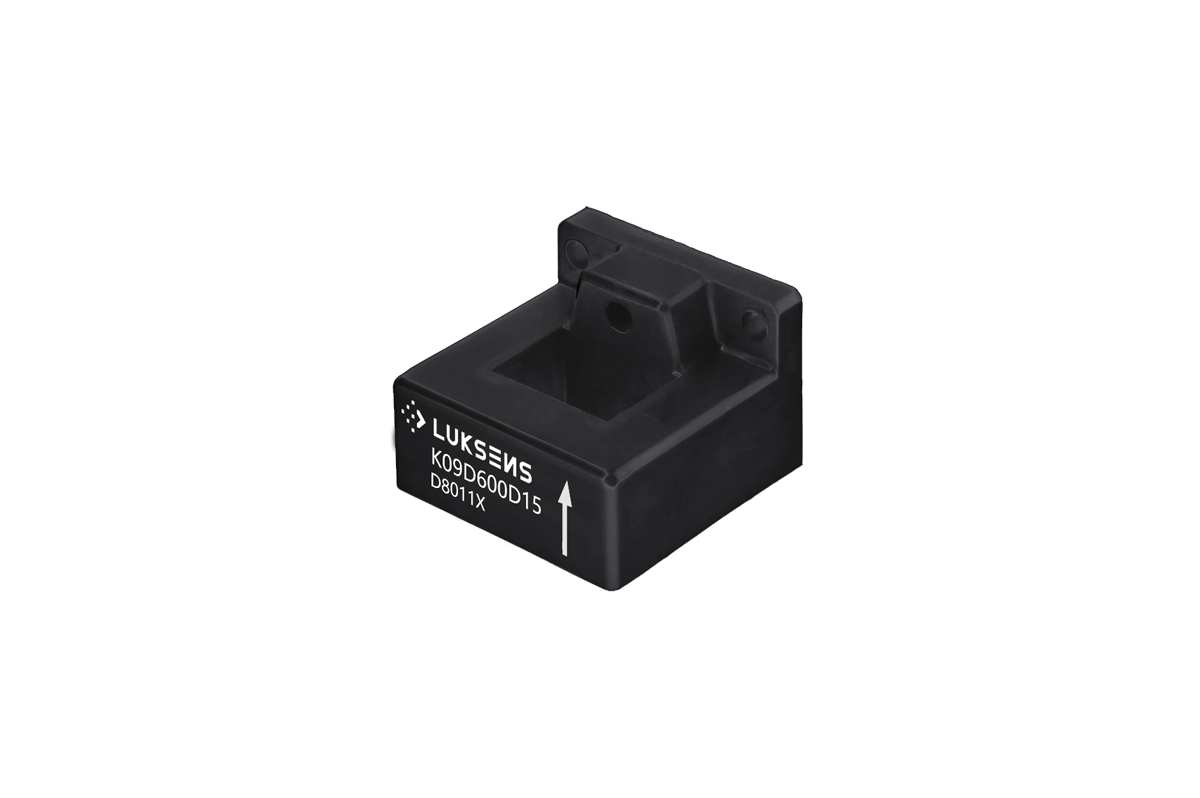

K09D050D15 series Open-Loop current sensor



The K09 series is an Open-Loop current sensor based on the Hall effect. It provides electronic measurement of DC, AC or pulse currents at same time, and their combinations with galvanic between the primary (high current) and secondary circuits.

Categories: ,

Description

Series

K09

Measurement

Current

Nominal Range

±50 A

Second. Output Signal

Voltage

Second. Output Signal Value

±4 V2

Primary Signal

AC, DC, Pulse+ DC

Supply Voltage Range

±15 V

Non-Linearity Error

1 %

Op. Temperature

-25 °C / 85 °C

Technology

Open loop Hall effect

Mounting

Terminal plug

Applications

Frequency converters
Servo motor drives
Battery management systems
Welding applications



K09 Series-Datasheet-Luksens

Additional information

Accuracy

Current measuring range

Output (V)

4 V
Supply voltage
