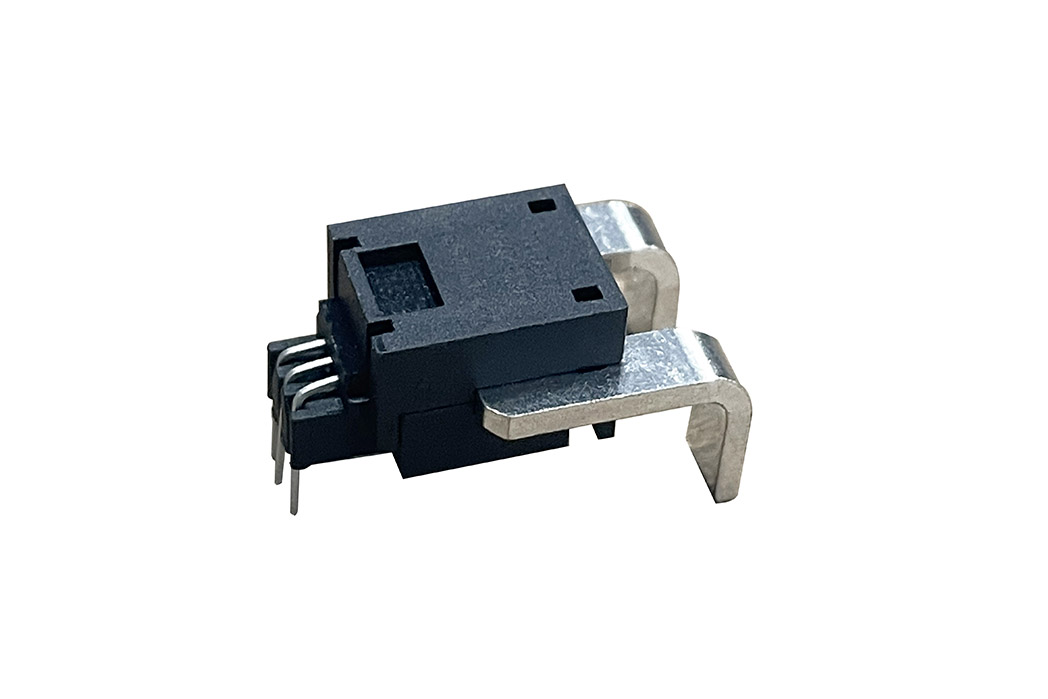

C06 series Open-Loop current sensor

Accuracy: 0.8%
Measuring Range: 50A|100A|150A|200A|250A|300A|400A
Output: 2.5±2V@IPN
Supply Voltage: 5V

 The C06 series current sensor provides efficient and precise sensor solutions for AC, DC and pulse currents in industrial, commercial and communications systems. It consists of three main components: an accurate low-temperature drift linear hall sensor, a flux collector and a current transformer. It offers markedly low resistance, reducing power loss and temperature drift to deliver exceptional performance.

Categories: ,

Description

Accuracy@25℃

Current measuring range

, , , , , ,

Supply voltage

Output

2.5±2V@IPN

Feature:

  • Non-contact measurement of high current
  • Output voltage proportional to carried current
  • nominal range ±400A (DC or AC peak)
  • Ratio metric output from supply voltage
  • Electrical isolation between the primary conductor and the sensor output
  • Superior temperature stability and linearity
  • High frequency bandwidth 120kHz
  • Compact size for applications with limited space

Suitable for the following:

  • HVAC
  • Converters
  • Intelligent power/battery management systems
  • Welding applications
  • Variable speed drives
  • Combiner Boxes
Download DataSheet in PDF

Please paste here product’s 3D Rendering

Additional information

Accuracy@25℃

Current measuring range

, , , , , ,

Supply voltage

Output

2.5±2V@IPN
