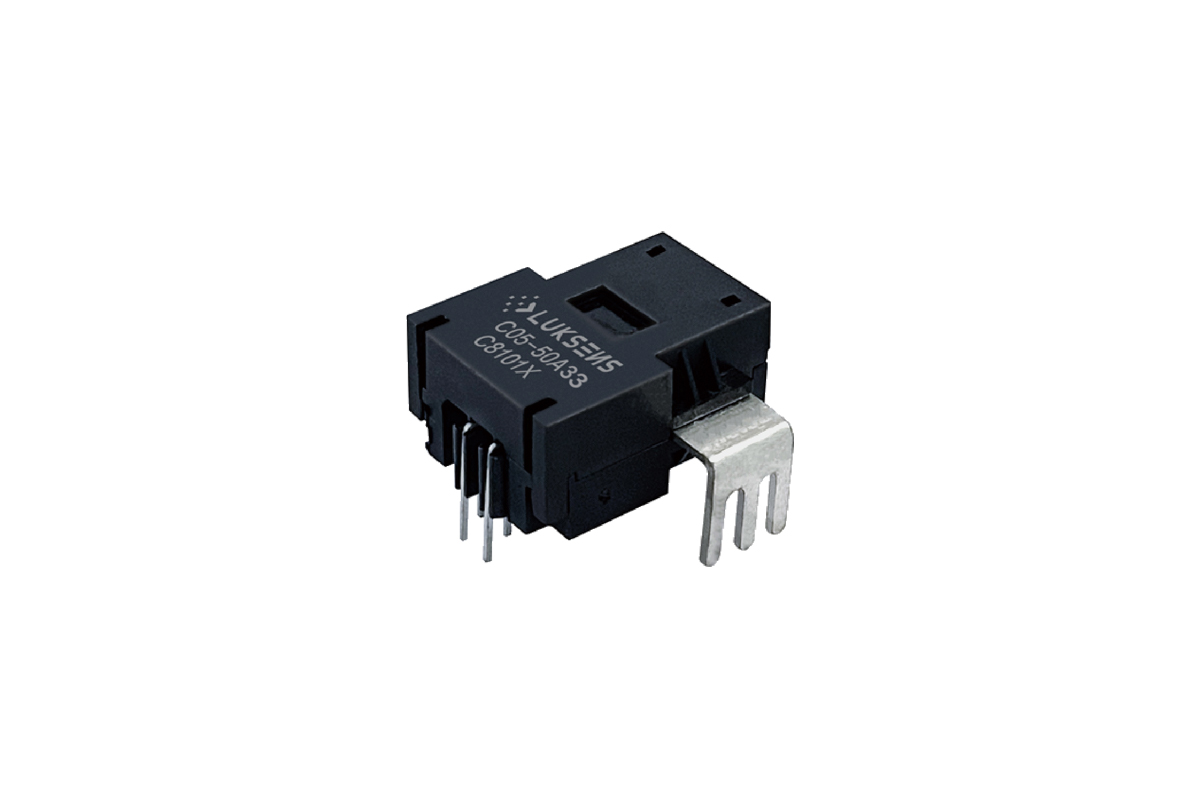

C05-XXA33 series Open-Loop current sensor

Accuracy: 0.8%
Measuring Range: 10A|16A|20A|32A|50A|80A|100A|120A
Output: 1.65±0.46V@IPN
Supply Voltage: 3.3V

The C05 series current sensor provides efficient and precise sensor solutions for AC, DC and pulse currents in industrial, commercial and communications systems. It consists of three main components: an accurate low-temperature drift linear hall sensor, a flux collector and a current transformer. It offers markedly low resistance, reducing power loss and temperature drift to deliver exceptional performance.

Description

Accuracy@25℃

Current measuring range

, , , , , , ,

Supply voltage

Output

1.65±0.46V@IPN

Feature:

  • Non-contact measurement of high current
  • Output voltage proportional to carried current
  • nominal range ±120A (DC or AC peak)
  • Ratio metric output from supply voltage
  • Electrical isolation between the primary conductor and the sensor output
  • Superior temperature stability and linearity
  • High frequency bandwidth 120kHz
  • Compact size for applications with limited space

Suitable for the following:

  • Home appliances
  • Load detections and managements
  • Intelligent power/battery management systems
  • Welding applications
  • Variable speed drives
  • Combiner box
