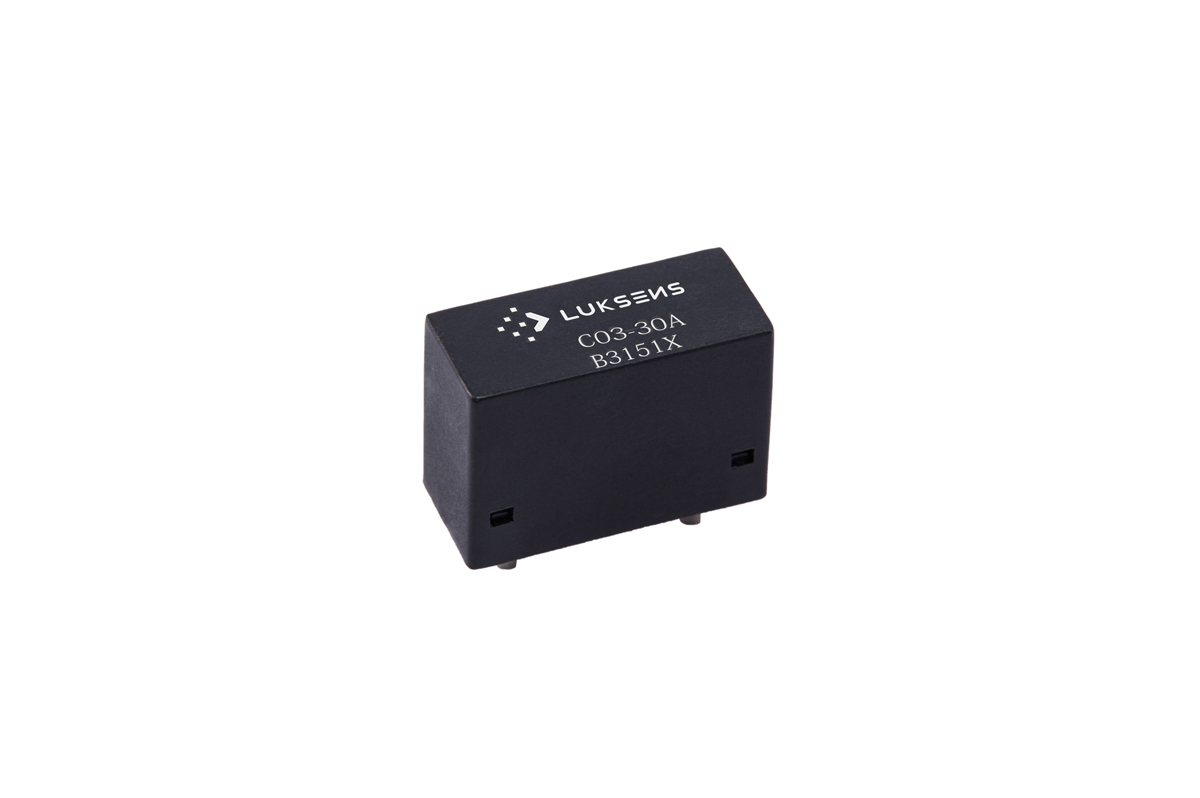

C03-30A Open-Loop Current Sensor

Accuracy: 1.5%
Measuring Range: 30A
Output (V): 2.5±0.027V/A
Supply Voltage: 5V



The C03-30A series provides efficient and precise sensor solutions for AC, DC, and pulse currents in industrial, commercial and communications systems. It consists of three main components: an accurate low temperature drift linear hall sensor, a flux collector, and a current transformer. It offers markedly low resistance, reducing power loss and temperature drift to deliver exceptional performance.

Categories: ,

Description

Accuracy@25℃

Current measuring range

Supply voltage

Output

2.5±0.027V/A

Feature:

  • Non-contact measurement of high current
  • Output voltage proportional to carried current
  • measuring range ±85A (DC or AC peak)
  • High sensitivity 27 mV/A
  • Ratio metric output from supply voltage
  • Nearly zero magnetic hysteresis
  • Superior temperature stability and linearity
  • High frequency bandwidth 30kHz
  • Compact size for applications with limited space



Suitable for the following:

  • Home appliances
  • Load detections and managements
  • Switched-mode power supplies (SMPS)
  • Welding applications
  • Variable speed drives
Download DataSheet in PDF

Please paste here product’s 3D Rendering

Additional information

Accuracy@25℃

Current measuring range

Supply voltage

Output

2.5±0.027V/A
