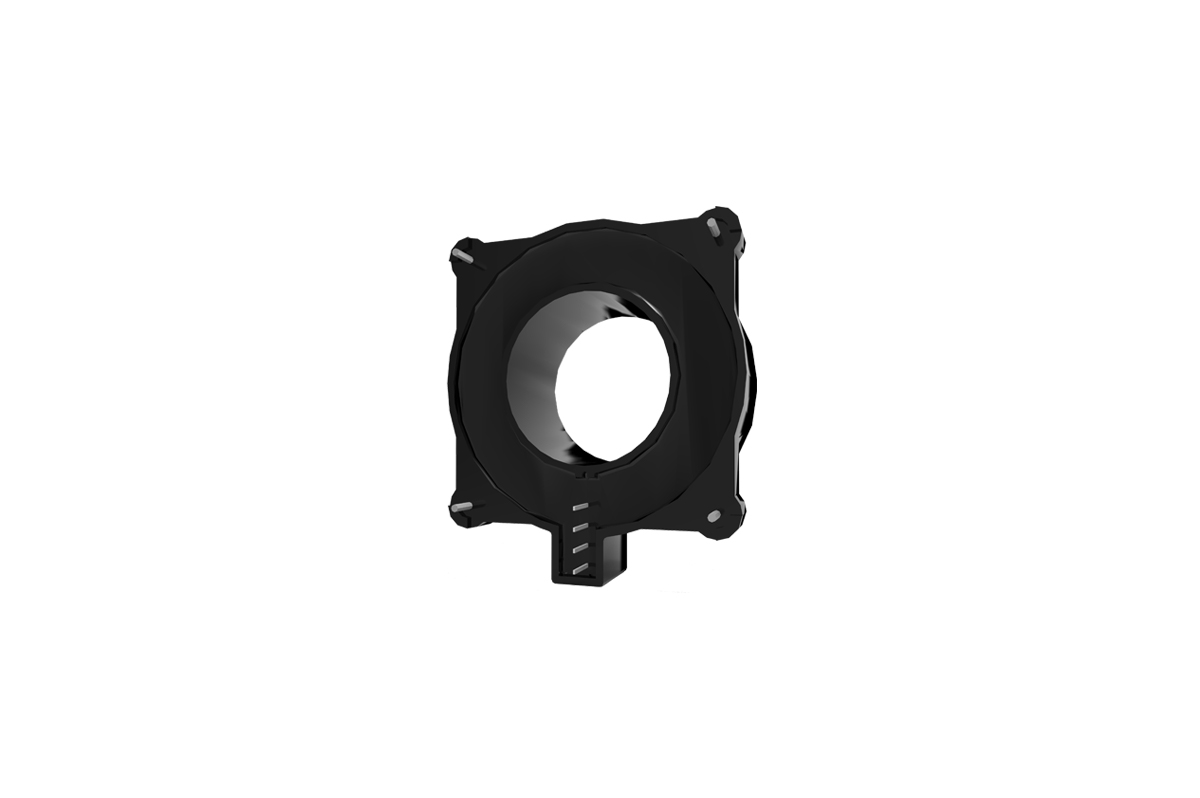

C02FS series Open-Loop Current Sensor

Accuracy: 0.8%
Measuring Range: 400A|500A|600A|700A|800A|900A|1000A|1100A|1200A
Output (V): 2.5±2V@IPN
Supply Voltage: 5V

The C02FS series current sensor provides efficient and precise sensor solutions for AC, DC and pulse currents in industrial, commercial and communications systems. It consists of three main components: an accurate low-temperature drift linear hall sensor, a flux collector and a current transformer. It offers markedly low resistance, reducing power loss and temperature drift to deliver exceptional performance.

Categories: ,

Description

Accuracy@25℃

Current measuring range

, , , , , , , ,

Supply voltage

Output

2.5±2V@IPN

Feature:

  • Non-contact measurement of high current
  • Output voltage proportional to carried current
  • nominal range ±1200A (DC or AC peak)
  • High output range up to ±2000 mV/IPN
  • Ratio metric output from supply voltage
  • Electrical isolation between the primary conductor and the sensor output
  • Superior temperature stability and linearity
  • Compact size for applications with limited space

Suitable for the following:

  • Home appliances
  • Load detections and managements
  • Intelligent power/battery management systems
  • Welding applications
  • Variable speed drives



Download DataSheet in PDF

Please paste here product’s 3D Rendering

Additional information

Accuracy@25℃

Current measuring range

, , , , , , , ,

Supply voltage

Output

2.5±2V@IPN
