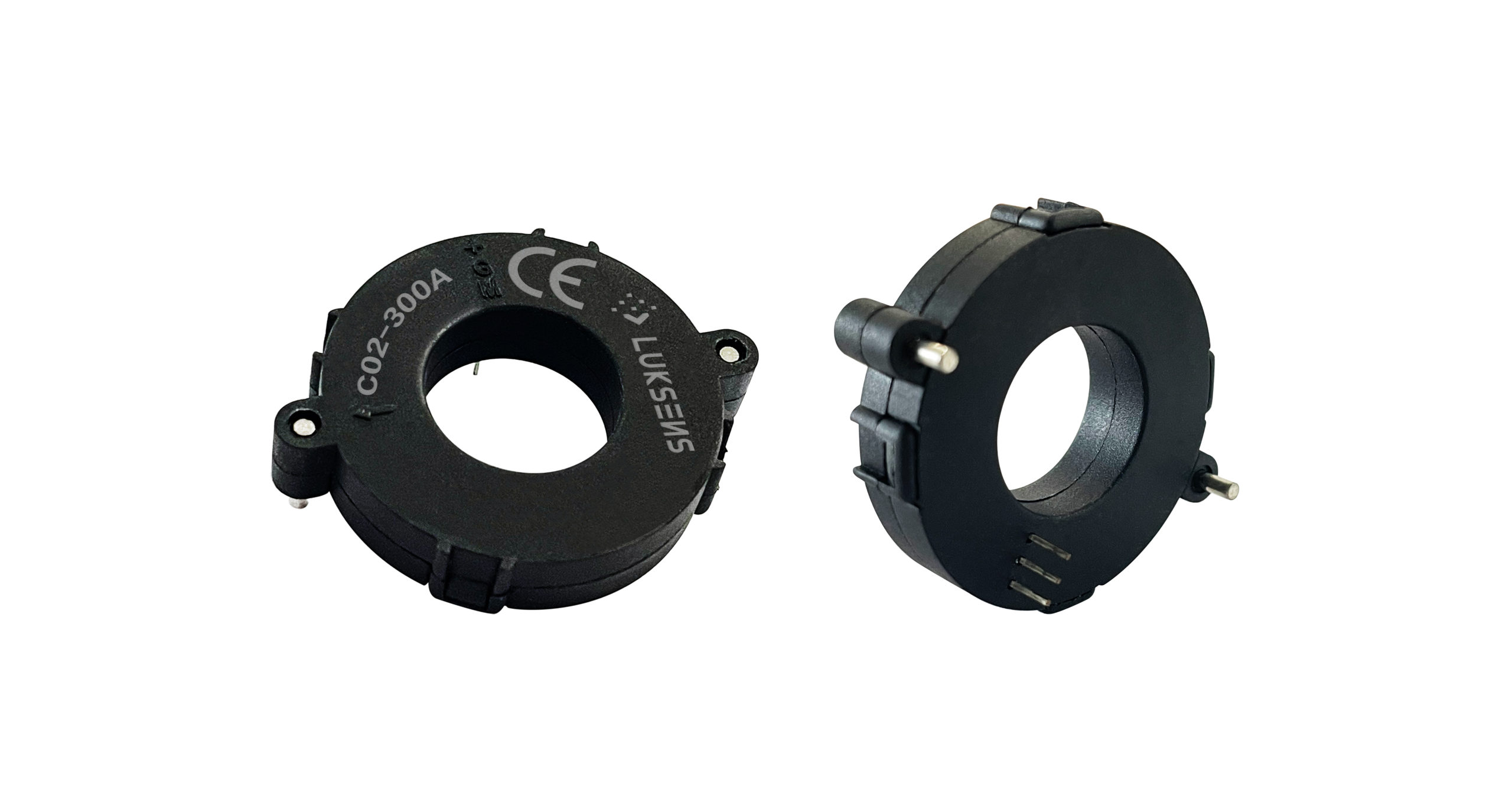

C02 series Open-Loop Current Sensor

Accuracy: 1%
Measuring Range: 200A|300A|400A|500A|600A|700A|800A
Output (V): 2.5±2V@IPN
Supply Voltage: 5V

The C02 Series provides efficient and precise sensor solutions for AC, DC, and pulse currents in industrial, commercial and communications systems. It consists of three main components: an accurate low-temperature drift linear hall sensor, a flux collector, and a current transformer. It offers markedly low resistance, reducing power loss and temperature drift to deliver exceptional performance.

Categories: ,

Description

Current measuring range

, , , , , ,

Accuracy@25℃

Supply voltage

Output

2.5±2V@IPN

Feature:

  • Non-contact measurement of high current
  • Output voltage proportional to carried current
  • nominal range ±800A (DC or AC peak)
  • High output range up to ±2000 mV/IPN
  • Ratio metric output from supply voltage
  • Electrical isolation between the primary conductor and the sensor output
  • Superior temperature stability and linearity
  • Compact size for applications with limited space

Suitable for the following:

  • Home appliances
  • Load detections and managements
  • Intelligent power/battery management systems
  • Welding applications
  • Variable speed drives
Download PDF

Please paste here product’s 3D Rendering

Additional information

Current measuring range

, , , , , ,

Accuracy@25℃

Supply voltage

Output

2.5±2V@IPN
