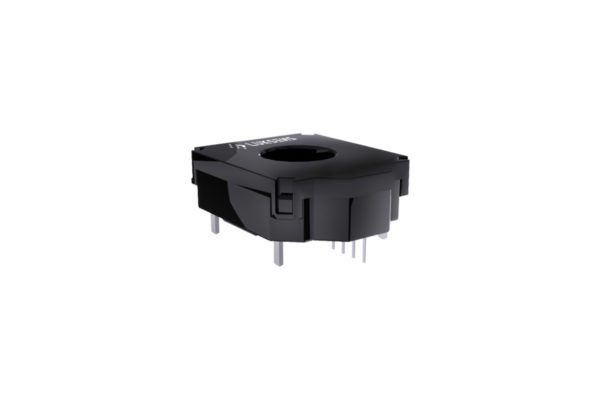

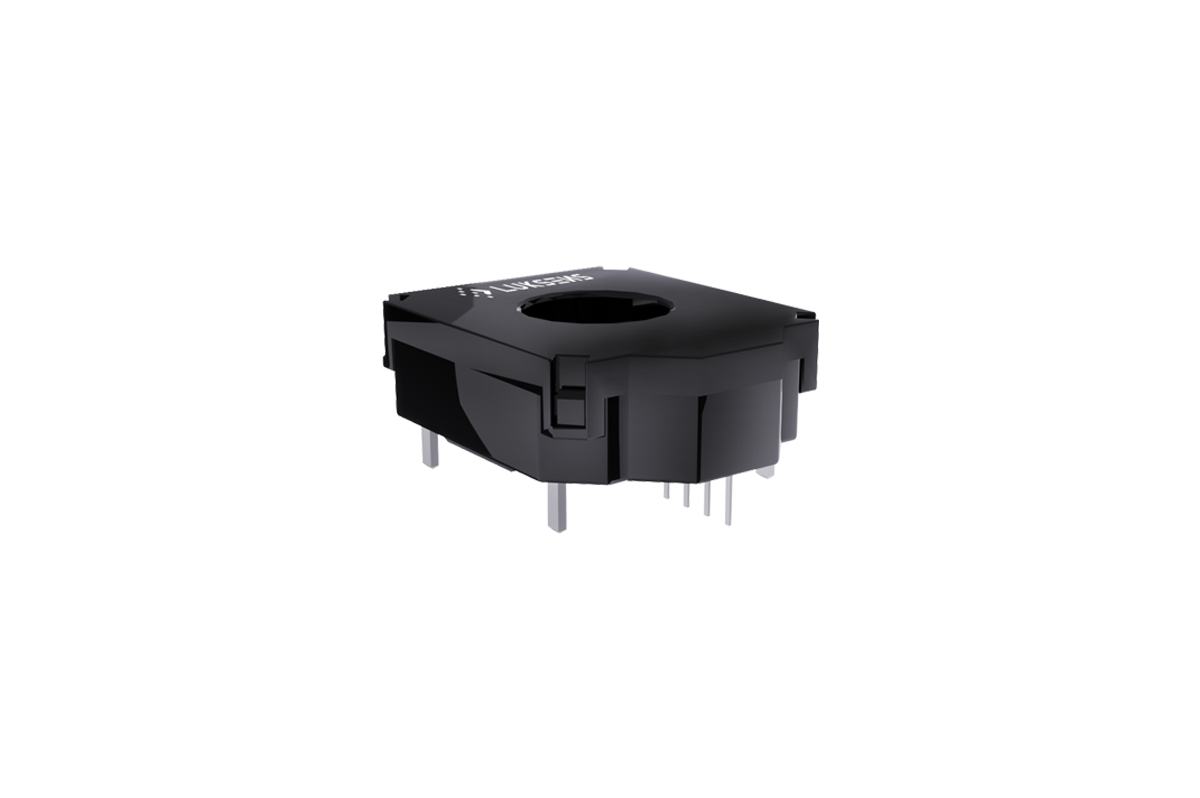

AC5 series Open-Loop current sensor

Accuracy: 1%
Measuring Range: 100A – 700A | 900A
Output (V): 2.5±2V@IPN
Supply Voltage: 5V

The AC5 Series provides efficient and precise sensor solutions for AC, DC and pulse currents in auto- motive applications. It covers from low voltage to high voltage, and provides galvanic separation be- tween the primary circuit and the secondary circuit. It consists of three main components: an accurate low-temperature drift linear hall sensor, a flux collector and a current transformer. It offers markedly low resistance, reducing power loss and temperature drift to deliver exceptional performance.

Categories: ,

Description

Accuracy@25℃

Current measuring range

, , , , , , ,

Supply voltage

Output

2.5±2V@IPN

Feature:

  • sensing range ±900A (DC or AC peak)
  • Non contact measurement of high current
  • Nearly zero magnetic hysteresis
  • Superior Temperature stability and linearity
  • High frequency bandwidth 150 kHz
  • Compact size for applications with limited space

Suitable for the following:

  • DC/DC Converters
  • Starter Generators
  • Electrical Power Steering
Download DataSheet in PDF
